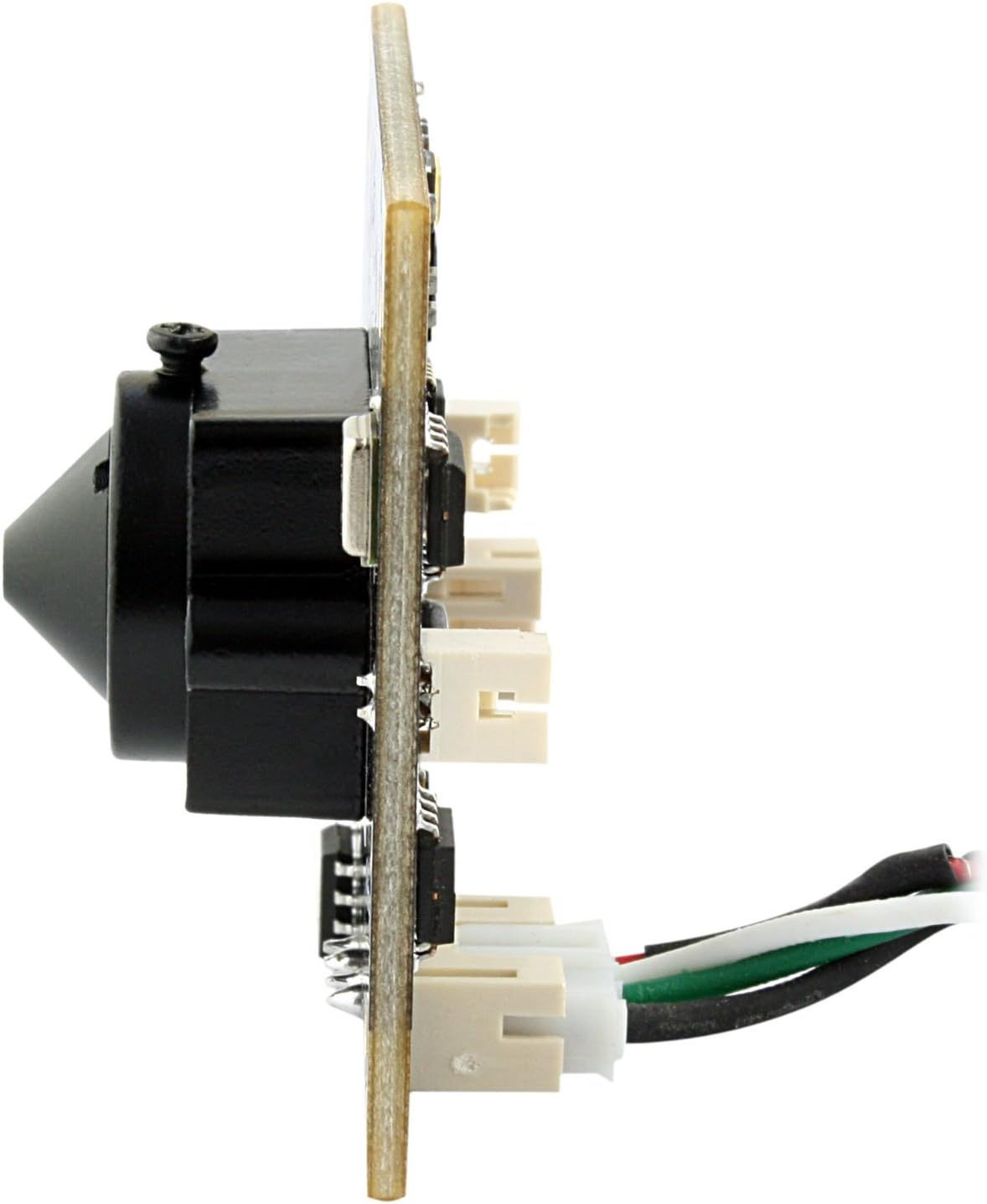

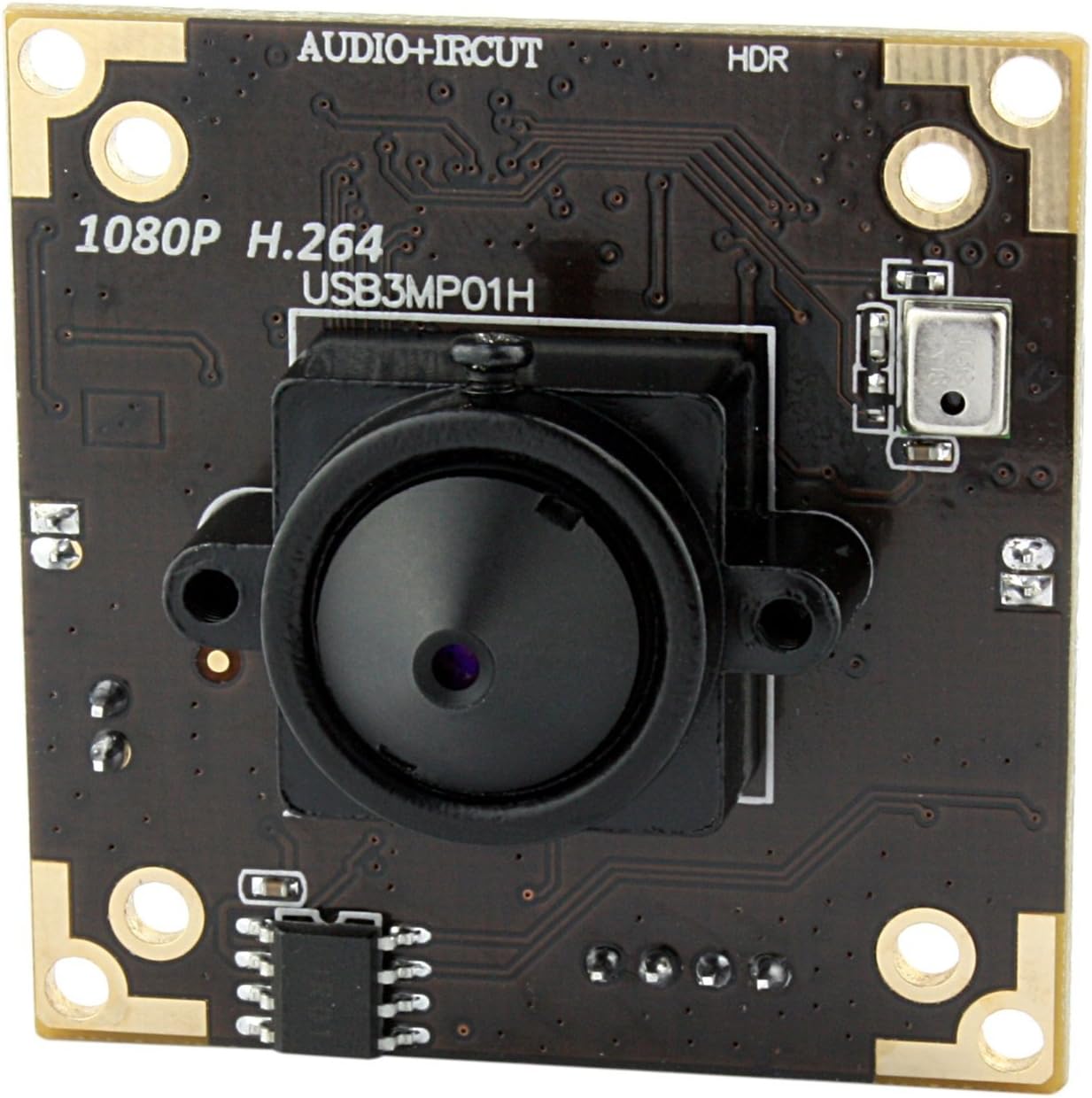

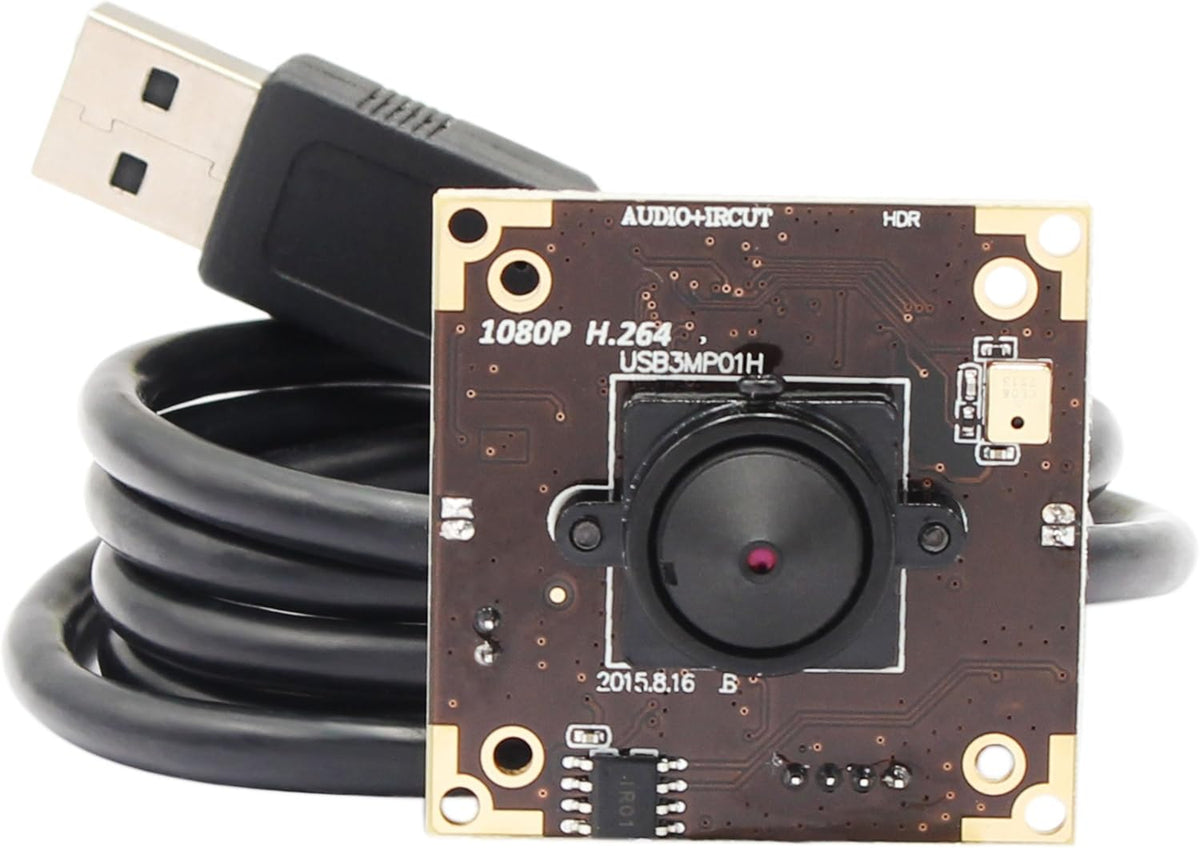

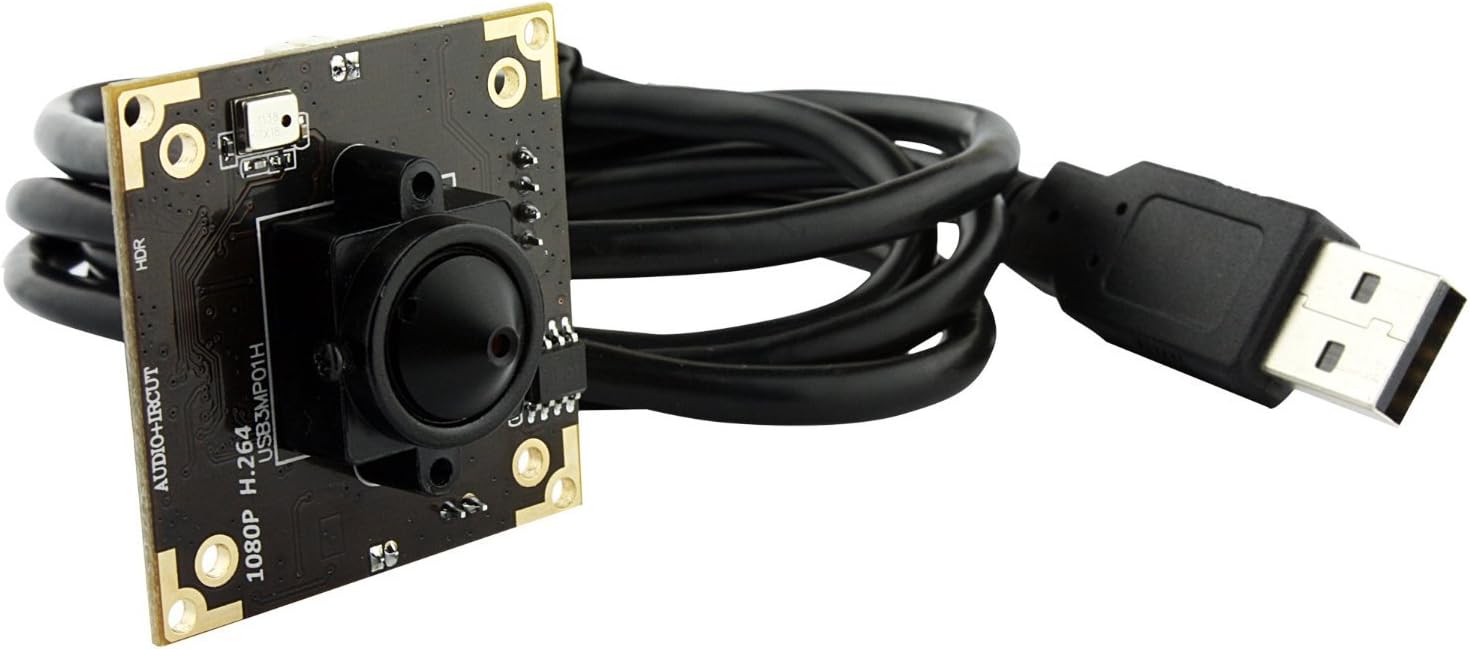

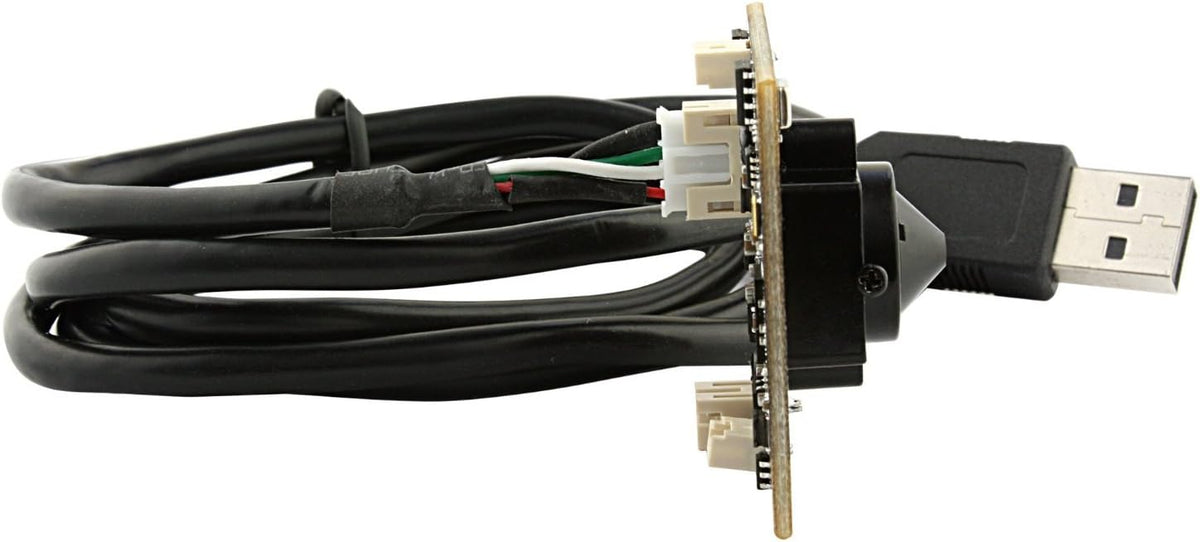

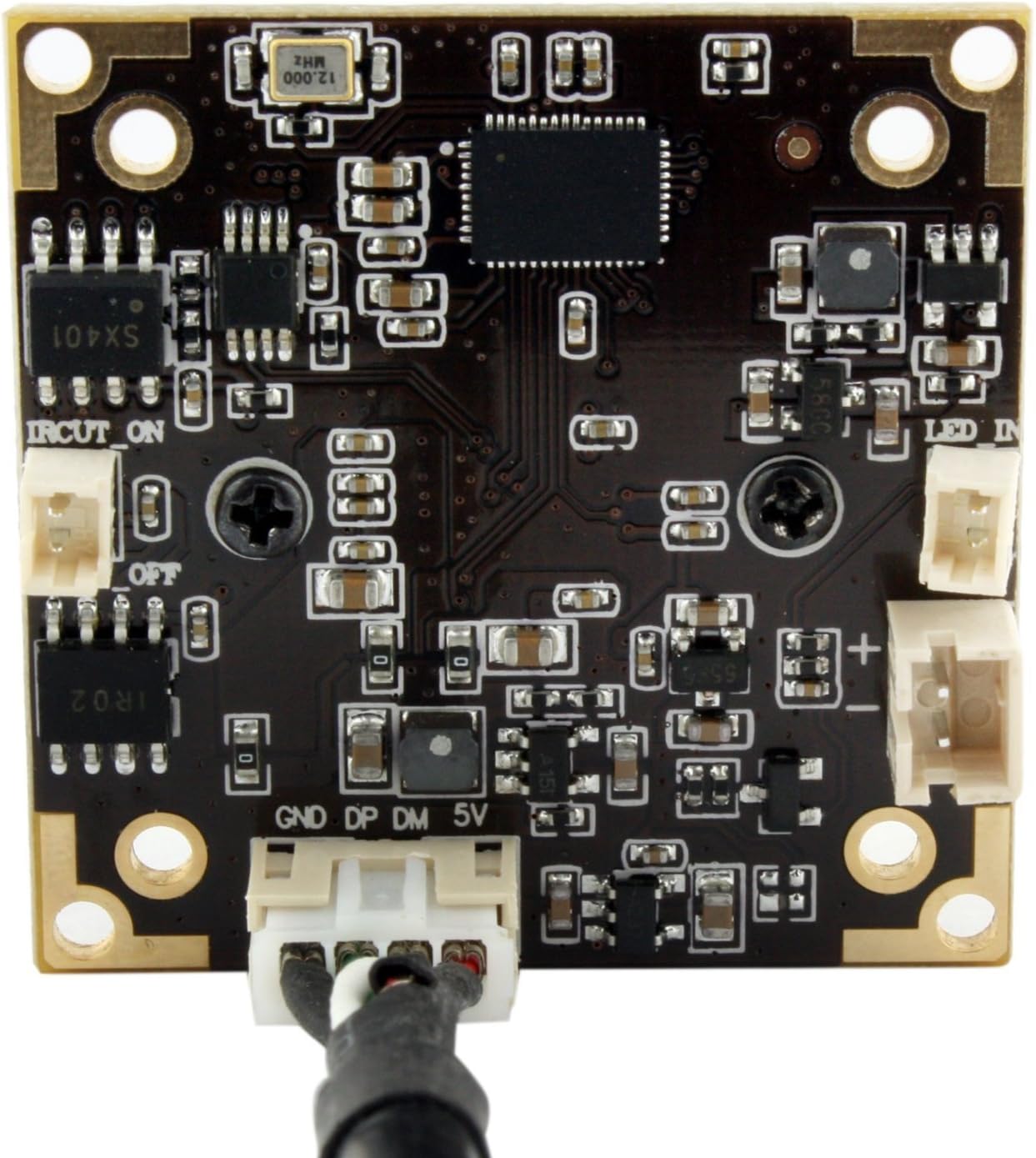

3.0 megapixel WDR USB Camera with 3.7mm pinhole Lens H8918
3.0 megapixel WDR USB Camera with 3.7mm pinhole Lens H8918
3.0 megapixel WDR usb camera module for any light condition, strong or low light can both capture clear image
H.264/MJPEG/YUY2 compression format optional, easy to install to linux,android,windows PC system
MICRON AR0331 sensor with HD sharp image
Dynamic Range up to 100 dB for strong car plate, sunlight etc.
3.7mm pinhole lens, small and hidden
ELP-USB3MP01H-L37 is a WDR(Wide Dynamic Range) USB camera, it can view clear image under very strong light or very low light, such as the car front light is very strong, while the WDR camera can capture the clear image too)
WDR camera very newly used in USB cameras, with USB port easy to plug and play installation, widely used in all kinds of industrial or personal home security, equiped with WDR perfect to use in any light condition.
Specification:
3Megapixel 2048X1536 resolution
Sensor 1/3 inch MICRON AR0331 CMOS Sensor
Picture format H.264/MJPEG/ YUY2 optional/USB Protocal USB2.0 HS/FS
Auto exposure AEC Support/Auto white blance AEB Support
Performance: H264: 640X360@ 30fps /1280X720@ 30fps /1920X1080@ 30fps
MJPEG:640X480@ 30fps /800X600@ 30fps /1280X720@ 30fps/1280X1024@ 30fps/1920X1080@ 30fps /1600X1200@ 15fps /2048X1536@ 15fps
YUV:640X480@ 30fps /800X600@ 20fps /1280X720@ 5fps/1280X1024@5fps/1920X1080@5fps /1600X1200@ 5fps /2048X1536@ 3fps
Adjustable parameters Brightness/Contrast/Color saturation /Definition/Gamma/WB
voltage DC 5V/current 150mA/work temperature
DEGREES(-20~70)
Size 38X38mm, 32x32mm
Support OS 'Win7 Win8 Win10 Win11/Linux 2.6 or above/Android 4.0 or above'
